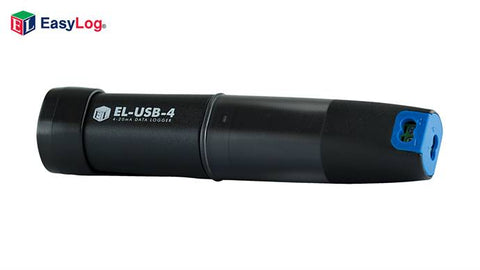

EL-USB-4 Current Datalogger

  • Sale
  • Regular price $225.00


This standalone data logger measures more than 32,000 readings over a 4-20mA d.c. measurement range. The data logger is supplied with a cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.


Measurement Range
4 to 20mA d.c.
Logging Rate
User selectable between 1 second and 12 hours
Battery Life
3 Years (at 25°C and 2 second logging rate)
