Micronics Portaflow 440IP Portable Clamp-on Flow Meter (Ext Battery)

  • Sale
  • Regular price $9,995.00

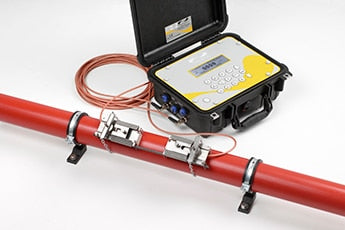

Our portable flow meter solutions are ultrasonic, clamp on and non-invasive, for closed pipe applications. This means no interruption to process and no downtime whilst the portable flow meter units are installed.



  • For measuring liquid flow
  • To suit pipes 50mm – 2000mm OD
  • Waterproof
  • Suitable for rugged external applications
  • Extended battery life
  • Sleep mode for external use
  • One set of transducers

TECHNICAL SPECIFICATIONS

Carry Case: The PF440IP is supplied in a hard wearing IP67 case
‘B’ Transducers: 50mm OD to 2000mm OD pipe, IP68 rated
Flow Velocity Range: 0.1m/s to 10m/s. Bi-directional subject to pipe size
Accuracy: -/+ 0.5% to 3% dependent on flow and pipe size
Turndown Ratio: 200:1
Transducer Operating Temp: -20°C to +135°C
Outputs: Isolated 0/4 – 20mA; USB, 5v pulse @ 1 pulse/sec max
Data Logging: 198,000 data points. Up to 20 named recording blocks. Data displayed locally in text or graph format. Real time or stored. Can be downloaded via USB port to Windows based PC.
Battery Life: >150hrs with continuous measurement and can be programmed to take intermittent readings at intervals of up to 1 hour enabling the meter to operate on its internal batteries for up to 4 months on a continuous basis.



Expected Delivery : 4 - 6 weeks from order confirmation.

Standard manufacturers warranty - 3 years
